Question 1

Buying & Fitting Guide

Accepted Answer

The AC system has many key components: compressor, condenser, receiver dryer, evaporator, and hoses. For an AC system to work, it needs a gas or liquid substance called refrigerant (R-12 in older cars, R-134a in 1995 and newer cars). The job of an AC condenser is to convert the AC gas into a liquid form by cooling it. Some important information for selecting the correct AC condenser is the type of part needed; fitment position, required refrigerant, transmission type and date limitation of the unit. As car manufacturers regularly update certain peripherals and design of their models, some condensers will only be suitable for particular models of certain years.

Question 2

Useful Fitting Accessories & Tools

Accepted Answer

Click on the links below to find useful fitting accessories and tools:

Torches and Work Lights
Mechanic's Toolkit
Rust Penetration
Disposable Gloves and Hand Care
Cleaning Rags
Breaker bars and torque wrenches
AC Cleaning
DIY Tools

Question 3

Helpful Tips

Accepted Answer

There are two common causes of condenser failure. The first scenario occurs when the condenser starts leaking. The condenser has tubes and seals, both of which can leak with normal wear and tear. Since there is no way to replace these tubes and seals, you will need a new condenser. Keep in mind this can also be caused by physical damage as the condenser is mounted near the front of the car and is susceptible to rocks or other road debris. In the second scenario, the condenser is unable to circulate the refrigerant due to metallic debris blockage. This debris is often the result of a failing or defective AC compressor where internal parts of the compressor come apart and disperse metallic debris throughout the system. If this is the case, you will not only need a new condenser, but also a new AC compressor, orifice tubes, and receiver dryer. As the AC system is a sealed unit, it is not something you will inspect or service unless you notice a change. If you notice a change in the temperature of the air through the AC vents (not as cold as it should be), schedule an inspection with your local mechanic.

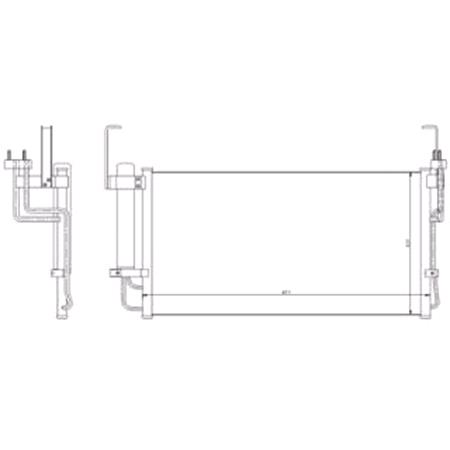

Somora Air Conditioning Condenser - 135060

€161.99

Item code: 153884

Delivery Only

In stock

Dispatch: TUESDAY

Specifications

OE Numbers

Overview

Condenser (Air Con Radiator)
CC / Engine Code: 1997cc G4BP
Fuel: Petrol
Air Con.: Yes
Gearbox: Manual / Automatic
Size (mm): 630 x 345 x 20
Suits Model Year: 08 / 2001 -> 05 / 2006

Buying & Fitting Guide

Useful Fitting Accessories & Tools

Helpful Tips

Safety and Product Information

€161.99

Delivery Only

In stock

Dispatch: TUESDAY

Specifications

OE Numbers

Overview

Condenser (Air Con Radiator) CC / Engine Code: 1997cc G4BP Fuel: Petrol Air Con.: Yes Gearbox: Manual / Automatic Size (mm): 630 x 345 x 20 Suits Model Year: 08 / 2001 -> 05 / 2006

Buying & Fitting Guide

Useful Fitting Accessories & Tools

Helpful Tips

Safety and Product Information

Condenser (Air Con Radiator)
CC / Engine Code: 1997cc G4BP
Fuel: Petrol
Air Con.: Yes
Gearbox: Manual / Automatic
Size (mm): 630 x 345 x 20
Suits Model Year: 08 / 2001 -> 05 / 2006
