Question 1

Buying & Fitting Guide

Accepted Answer

Tie rod ends are simple parts that connect the steering rack to the steering knuckle on each front wheel. An adjusting sleeve sits between the inner and outer tie rod ends. When you turn the steering wheel, it transmits that movement through various steering components until the tie rod ends push or pull the wheel and make the wheels turn. Some important information for selecting the correct tie rod ends is the type of part needed; fitment position, rod type (inner/ outer), steering type (power steering/ without power steering) and date limitation of the unit. As car manufacturers regularly update certain peripherals and design of their models, some tie rod ends will only be suitable for particular models of certain years.

Question 2

Useful Fitting Accessories & Tools

Accepted Answer

Click on the links below to find useful fitting accessories and tools:

Mechanic's Toolkit
Disposable Gloves and Hand Care
Screw Drivers
Thread Lock Adhesive
Braker Bars
Hammers
Mallets
Safety glasses
Pliers
Inner Tie Rod Tool
Grease Guns

Question 3

Helpful Tips

Accepted Answer

It's a manageable task to check if the tie rods are bad in your vehicle. In order to do this, jack up the front of vehicle using appropriate Jacks and Axle Stands. Once the wheel is entirely off the ground, check for play by placing your hands at nine o'clock and three o'clock positions (the midpoint of the left and right sides of the tire). Press with left, then right, alternating a push/pull movement on each side. If there is play or slop, it's worth investigating further. The front is already jacked up, so take off the wheel and have a look underneath. Right behind the brake rotor and hub, you should be able to see the tie rod end. Inspect it for any damage. If the bushing is torn, odds are road grit has accumulated inside and destroyed it, so you will need to replace the tie rod. If the bushing is solid, reach up and grasp the outer tie rod firmly, and give it a good shake. If it easily moves from side to side, it's time for replacement.

Question 4

Blue Print Tie Rod Ends

Accepted Answer

Blue Print is a brand of high-quality parts for use in the servicing and repair of cars and vans. Blue Print parts are a great value alternative to expensive replacement parts from the vehicle manufacturer’s dealership. They are designed and specified to be an exact replacement for the original part that is removed from the car and to perform to high standards when fitted. All tie rod ends are designed and manufactured to meet OE standards and undergo stringent quality control.

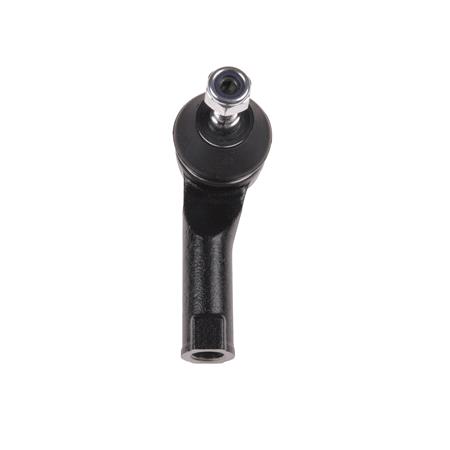

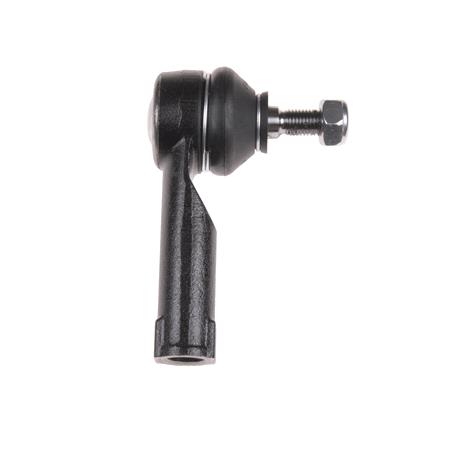

Blueprint Right Tie Rod End - Adn187203 for renault clio mk ii 1998 to 2005 - 1.2 (B/CB0F, B/CB0A, B/CB10, B/CB1K, B/CB2D, B/CB [58hp. 1149cc.]

€15.99

Item code: 931006

To fit on renault CLIO Mk II

Delivery Only

In stock

Dispatch: THURSDAY

Fitting Position: Front Axle Right

Specifications

OE Numbers Open

Overview

Blue Print Tie Rod End
