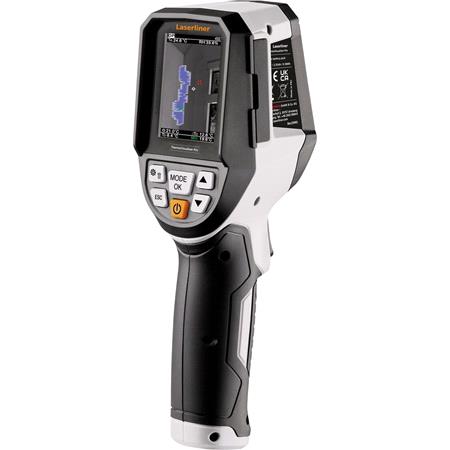

This innovative thermal camera determines surface temperatures, relative humidity, ambient temperature and dew point temperature. It reliably visualises temperature curves, thermal bridges and condensation. A fusion from the thermal camera, digital camera and hydrometer forms the visual dew point function. It generates reliable thermal images with precise marking of surfaces that have reached or fallen below the dew point, ideal for critical interior space inspections. In addition to building inspections, the many possible uses include working on electrical systems, machines, heating and ventilation systems as well as locating heat sources or cold spots. Supplied with battery pack, USB-C-cable and softbag.
Specifications
- Min/Max: Yes
- Dew point temperature: Yes
- Image recording: Yes
- Data transfer: Yes
- Digital camera: Yes
- Time stamp: Yes
- Adjustable emissions level: Yes
- Humidity: Yes
- MIX image: Yes
- Ambient temperature: Yes
- Thermal image: Yes
- Thermal bridge warning: Yes
- Mains operation: Yes
- Screen Type: 2,4" Colour TFT
- Sensor Type: uncooled microbolometer
- Display ResolutionDisplay Resolution: 320 x 240 pixels
- Image Frequency: 9 Hz
- Thermal Sensitivity (NETD): 60 mK @25°C
- Measuring Range Infrared Temperature: -20°C … 150°C, 0°C … 400°C
- Power Supply: Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh
- Operating Time: approx. 4 hours
