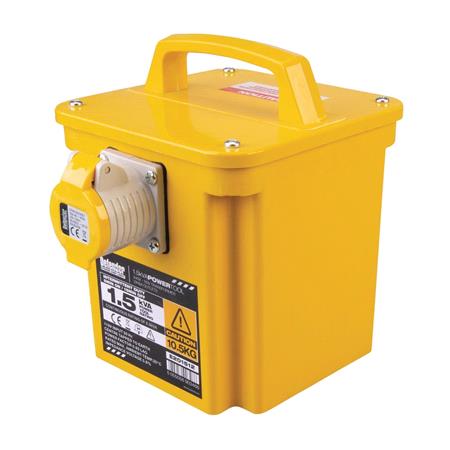

Popular transformer built for demanding construction tasks where mains voltage needs stepping down and isolating. Tough GRP case with 2 x 16A 110V outlets. Resettable overload protection keeps tools and appliances safe while maximising work times. For use with lighting applications and corded power tools such as hammer drills, impact drills, percussion drills and rotary hammer drills. Also suitable for use with other industrial appliances such as fume extractors. Intermittent rating: 1500VA. Duty cycle 5min on / 15min off. Continuous rating: 900VA. BSEN61558-1 compliant. Fitted with 110V 13A plug. Centre-tapped to earth for extra safety. 2m rubber-sheathed H07RN-F cable with 1.5mm² 3-core conductor. Ingress protection rating: IP44. Dimensions: 180 x 255 x 230mm. Weight: 11kg.
Specifications
- Input voltage: 230-240V
- Output voltage: 110V
- Apparent Power (kVA): 1.5KVA
- Intermittent duty rated output: 1500VA(1.5KVA)
- Continuous duty rated output: 900VA(0.9KVA)
- Output current: 2x16A
- IP Rate: IP44
- Rated Power Factor: 0.93 cos
- Cooling: Air Cooling
- Dimensions: 225 x 272 x 180mm
- Weight: 10.5kg
