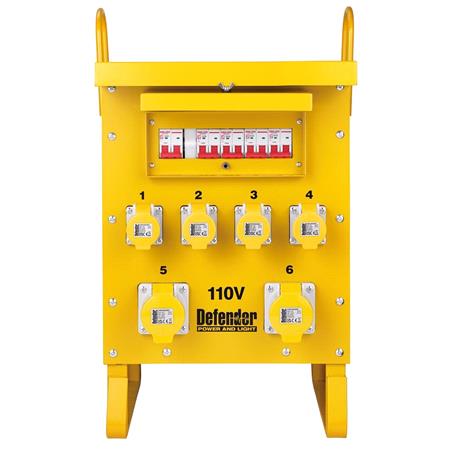

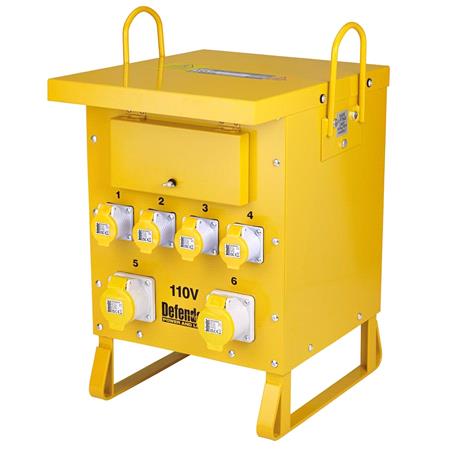

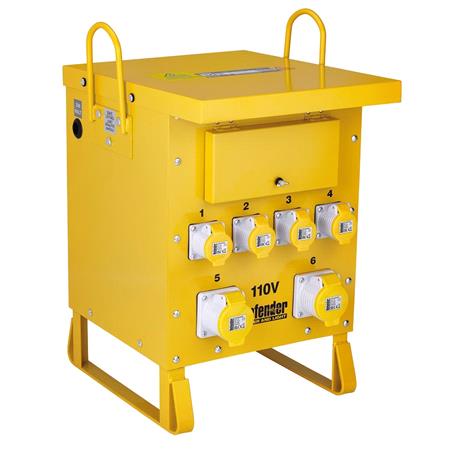

Draper 34959 Defender 110v 10kva Single Phase Transformer, 16a / 32a

Name: Draper 34959 Defender 110V 10kVA Single Phase Transformer, 16A / 32A
Brand: Draper
SKU: 4757347
Price: 1414.03 AUD
Availability: OutOfStock

Slide to view all the 3 images

%OFF

€856.99

Was €899.99 inc.Vat

Item code: 4757347

Delivery Only
In stock
Dispatch: FRIDAY

Shipping Cost

This item is excluded from any promo codes and offers.

OE Number

34959

34959

Overview

Draper 34959 Defender 110V 10kVA Single Phase Transformer, 16A / 32A

Single phase, air-cooled transformer with 4 x 16A and 2 x 32A 110V outlets. Collapsible lifting handles for safer handling and stacking. Elevated underside for improved access. Easily replaceable, bolted feet. Centre tapped to earth for extra safety. Supplied without plug or cable. Intermittent rating 10000VA. Continuous rating 7000VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP20. BSEN 61558-1 compliant. Dimensions: 470 x 400 x 680mm. Weight 69.5kg.

Specifications

Input voltage: 230-240V
Output voltage: 110V
Apparent Power (kVA): 10KVA
Intermittent duty rated output: 10000VA (10KVA)
Continuous duty rated output: 7000VA(7.0KVA)
IP Rating: IP44
Rated Power Factor: 0.93 cos
Socket Outlet configuration : 4 x 16A Sockets + 2 x 32A Sockets
Dimensions: 655 x 485 x 410mm
Weight: 69.5kg
