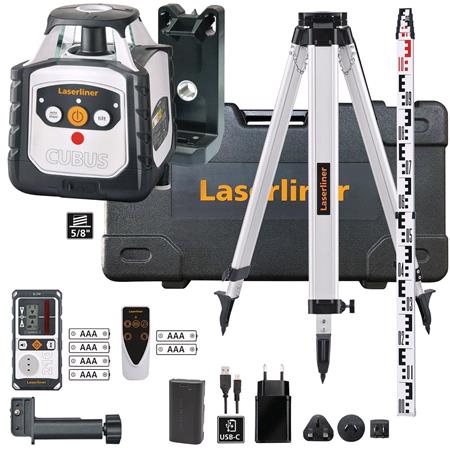

Draper 32170 Laserliner Cubus 210s Rotary Laser Level Kit, 1500mm

Name: Draper 32170 Laserliner Cubus 210S Rotary Laser Level Kit, 1500mm
Brand: Draper
SKU: 4753264
Price: 1795.18 AUD
Availability: OutOfStock

Slide to view all the 3 images

€1,087.99

Item code: 4753264

Delivery Only
In stock
Dispatch: THURSDAY

Shipping Cost

This item is excluded from any promo codes and offers.

OE Number

32170

32170

Overview

Draper 32170 Laserliner 052.205A Cubus 210S Rotary Laser Level Kit, 1500mm

This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes. A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.

Specifications

Horizontal/vertical levelling: Yes
Hand receiver mode: Yes
Scan mode: Yes
Spot mode: Yes
Precision sensor levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Anti-Drift-System (ADS): Yes
Tilt warning function: Yes
Self-Levelling Range: ± 4°
Accuracy: ±0.15 mm/m
Levelling: Automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength: 635 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Protection Class: IP 66
Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time: approx. 20 hours
Battery Recharging Time: approx. 4 hours
Operating Conditions: -10°C … 50°C
Storage Conditions: -10°C … 70°C
Dimensions (W x H x D): 130 mm x 160 mm x 145 mm
Weight: 1300g

Incorrect or missing product information? Let us know
