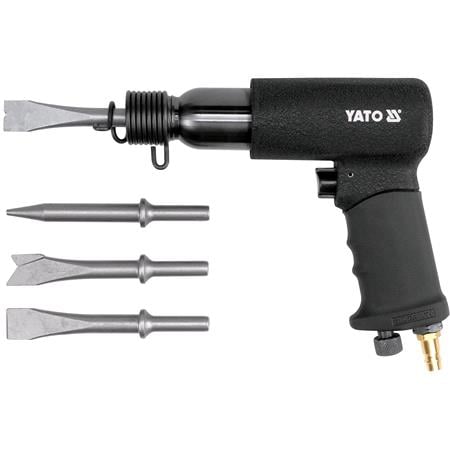

A pneumatic hammer is a tool powered by a stream of compressed air With the help of chisels, chisels and punches attached to the handle, it allows cutting, chiseling and punching metal The hammer is equipped with a connector that allows it to be connected to the pneumatic system, additional chisels and punches, and a spring for correct and safe operation of the tool. • Weight [kg] - 1. 5 • Diameter of air connection (PT) [” / mm] - 6. 3 / 1/4 • Air supply hose diameter (internal) [” / mm] - 10 / 3/8 • Impact frequency [min-1] - 3200 • Diameter of the tool holder [mm] - 10 • Maximum working pressure [MPa] - 0. 70 • Recommended working pressure [MPa] - 0. 62 • Required air flow (at 6. 2 bar) [l/min] - 560 • Sound pressure (ISO 15744) [d B(A)] - 96. 9 ± 1. 2 • Sound power (ISO 15744) [d B(A)] - 106. 5 ± 2. 0 • Vibration (ISO 28927-9) [m/s 2 ] - 73. 66 ± 7. 79
