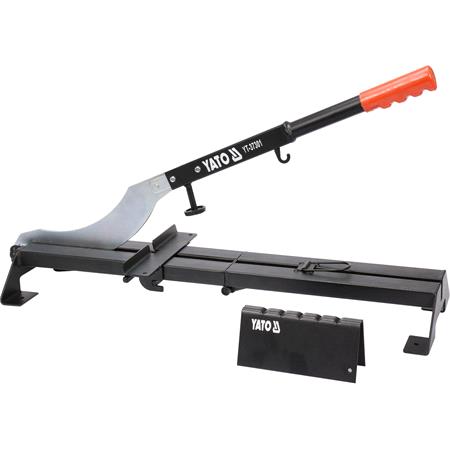

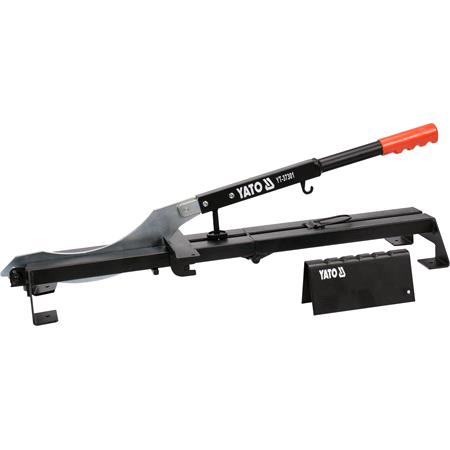

The guillotine for cutting floor and wall laminated panels made of thick steel sheet The structure is extremely rigid and resistant to deformation caused by the strong pressure of the long arm This guarantees easy and precise cutting Maximum cutting width with the angle stop in place is 210 mm, this allows us to cut most of the panels available on the market with typical widths of 130, 150, 160 and 190 mm Once the stop is removed, we can make rip cuts Design elements and technical solutions that guarantee effective and precise cutting: • stable table with a width of 100 mm supported on legs with rubber pads and holes for permanent fixing • large arm length approx. 520 mm minimizes pressure and makes cutting easier • the arm of the guillotine equipped with a high rubberized bumper to protect your hand from accidental crushing • blade with a special safety profile, cutting through panels up to 12 mm thick • additional support bracket for horizontal support when cutting long panels • removable angle stop for longitudinal cutting • folding table hinge and removable arm make the machine easy to transport and store.
