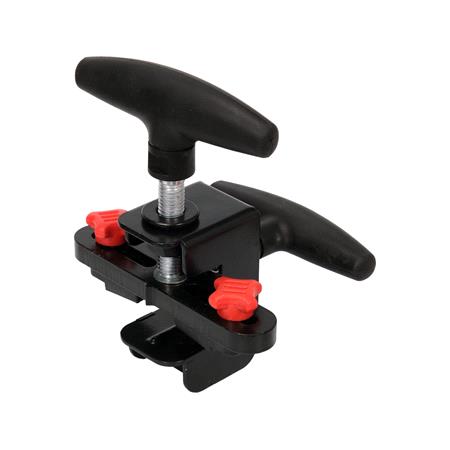

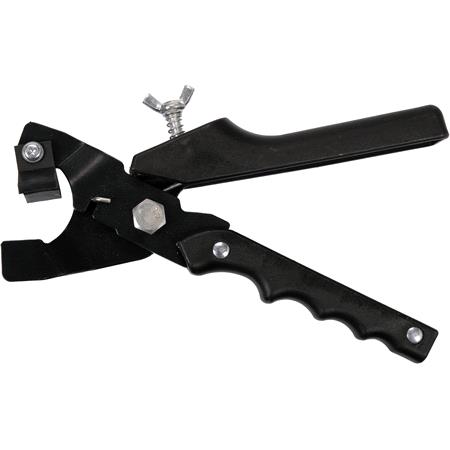

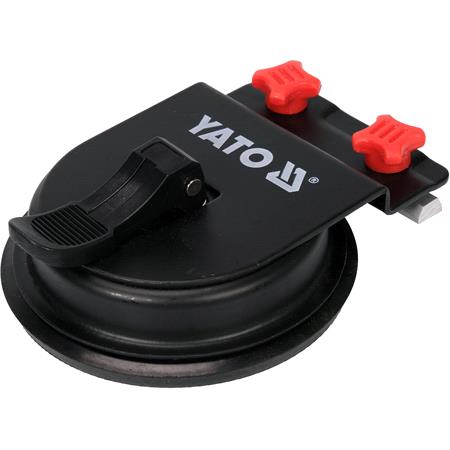

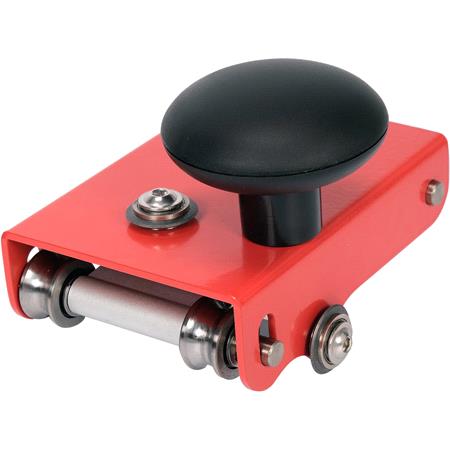

Cutting machine for ceramic plates with a length of up to about 320 cm The set includes:• three rails - guides made of aluminum• four mounting suction cups that are connectors of the rails• one no¿ on four rollers to guide along the guide The set includes hand pliers for breaking the notched plate and a wide handle for breaking larger sections of the plate The set is packaged in a bag - a case made of thick nylon The cutting element is a 22 mm diameter ball-bearing forked koblade It can be pressed by the operator against the material while cutting The cutter is designed for cutting large ceramic tiles with a thickness of 3 to 8 mm Maximum cutting length of about 320 cm Sposob of use:• depending on the size of the slab to be cut, we mount one, two or a combination of three guides on the surface of the slab. • to the guide mounted on the suction cups, we attach the wozek with the cutting unit• sliding it along the guide, we press with sensitivity to the surface of the plate obtaining the required cut• breaking is done with the included pliers or breaker For cutting large ceramic plates.
